· 产品介绍 /Products:
产品编号 Item number |
16292 |
16293 | 16294 | 16295 |
型号
Model |
YP-24 | YP-24B | YP-41 | YP-60 |
出 力 Cutting force |
100KN |
100KN |
160KN | 500KN |
螺帽尺寸 Size of nut |
M8-M24 |
M8-M24 | M18-M27 | M33-M39 |
长 度 Length |
appro.470mm | appro.230mm | appro.250mm | appro.340mm |
重 量 Weight |
appro.N.W4KG G.W6KG |
appro.N.W2KG G.W4KG |
appro.N.W4KG G.W6KG |
appro.N.W4KG G.W6KG |
包 装 Package |
塑料箱 plastic box |
塑料箱 plastic box |
塑料箱 plastic box |
铁箱 iron box |
· 配置说明 /Configuration:
◆ 当螺母生锈不容易拆卸时,采用这种专用螺帽迫切器是最省时省力的工具,优点不受无电力的影响。

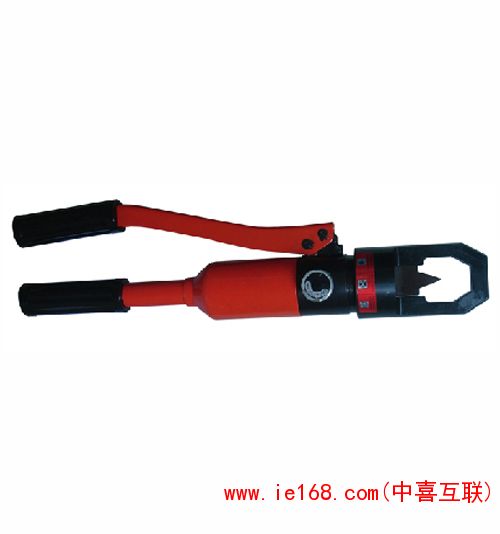

◆ When the nuts get rustted,this nut cutting machine is most time-saving,force saving tool,no need power.
◆ 16293、16294和16295需另配液压泵
◆ 16293, 16294 and 16295 are required to configure a hydraulic pump
